Blinking LED Light

Simple Blinking LED

This is a basic tutorial to get you going with Arduiono. You will learn how to make an external LED blink. Simple as that.

Components and supplies

1 – LED (generic)	1 – Resistor 10k ohm
2 – Jumper wires (generic)	1 – Breadboard (generic)
1 – Arduino UNO

Project description

Everyone’s got to start somewhere. This simple tutorial will get you going with a simple blinking LED in 1 second interval..

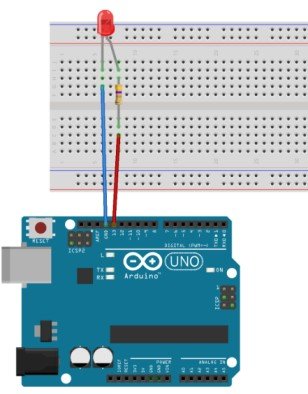

Circuit

Code

Blinking LED Code

arduino

This code makes the external LED connected to pin 13

1  int led = 13; // set the "led" variable as 13
2
3  void setup() {
4  pinMode(led, OUTPUT);   // designate port 13 as output
5}
6
7  void loop() {
8  digitalWrite(led, HIGH);   // turn the led on
9  delay(1000);               // wait for 1 second
10  digitalWrite(led, LOW);    // turn the  led off
11  delay(1000);               // wait for a second
12}
